KEY FEATURES
OF ASSISTRAIL®
-
15 Standard Configurations
The Assistrail® range includes 15 standard configurations, supporting installation in a range of use cases while maintaining a consistent engineered system.
-
Fast No-Weld Assembly
The modular, no-weld design removes the need for onsite fabrication, hot work permits or specialised trades. Prefabricated components streamline installation up to 50% faster than traditional fabricated handrails.
-
Galvanised HDG390 finish for durability
All Assistrail® components are galvanised to a minimum standard of HDG390, providing durability in outdoor environments and high-use public infrastructure.
-
Incorporates weld-free kerbrails on ramps
Integrates with Moddex weld-free Flexalyte kerbrail system designed to AS/NZS 1428, supporting compliant ramp and walkway installations without onsite welding.
-

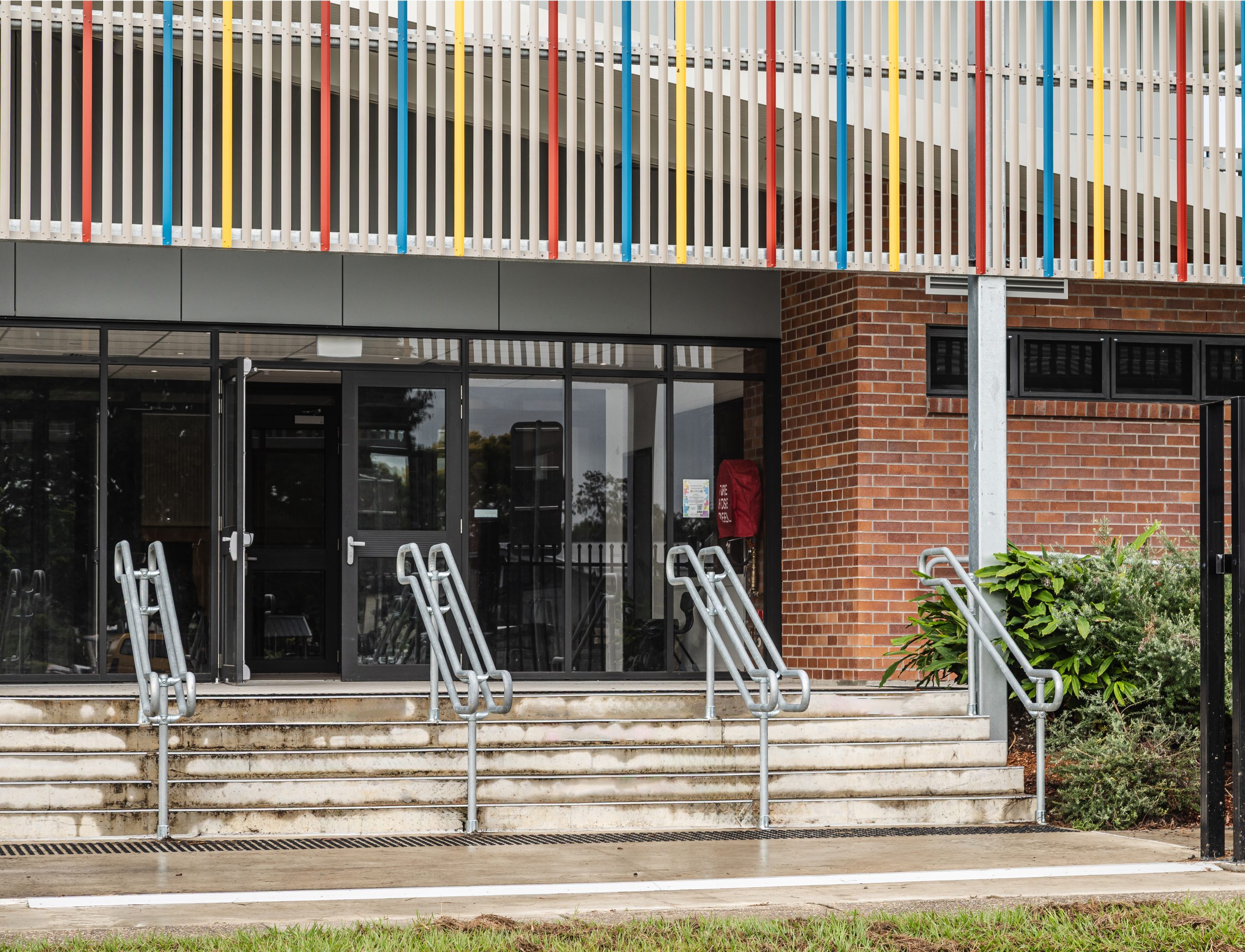

Single or double rail configurations for schools
Available in single or double rail configurations, including layouts commonly required for primary and secondary schools and Class 9B buildings.
-

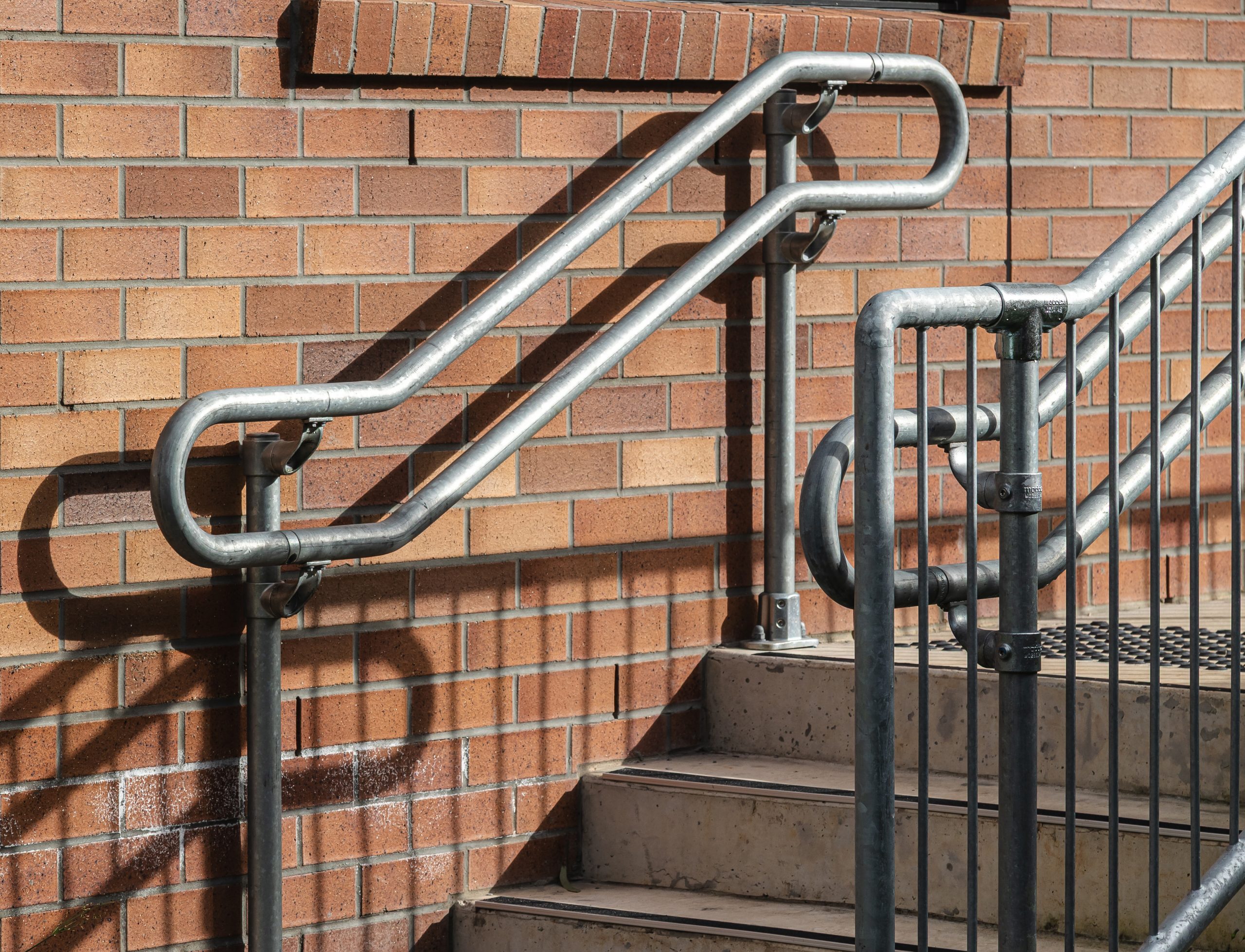

Smooth, continuous mandrel bends
Smooth, continuous mandrel bends provide consistent handrail geometry without sharp joints or interruptions, supporting compliant transitions along ramps, stairs and walkways in line with AS 1428 accessibility requirements.
APPLICATIONS & USE CASES OF ASSISTRAIL®
Sports and recreation centres
DDA access ramps and stairs
Fire and access stairs
Schools and universities
Hospital and medical facilities
Public transport and sightseeing
Commercial and community facilities
Configurations
-
AR10Single Inline Handrail. For stairs and level applications under one metre (FFL)AR10Single Inline Handrail. For stairs and level applications under one metre (FFL)
-
-
AR20Single Inline Handrail | Kerbrail. For disabled ramps under one metre (FFL)AR20Single Inline Handrail | Kerbrail. For disabled ramps under one metre (FFL)
-
-
AR30Single Inline Handrail | Midrail. For stairs and level applications under one metre (FFL) & midrail for extra protectionAR30Single Inline Handrail | Midrail. For stairs and level applications under one metre (FFL) & midrail for extra protection
-
AR40Single Inline Handrail | Midrail & Kerbrail. For disabled ramps under one metre (FFL) and midrail for extra protectionAR40Single Inline Handrail | Midrail & Kerbrail. For disabled ramps under one metre (FFL) and midrail for extra protection
-
-
AR45Single Inline Handrail | Mid & Bottom Rails. For stairs and level applications under one metre (FFL) and typical fire stair applicationsAR45Single Inline Handrail | Mid & Bottom Rails. For stairs and level applications under one metre (FFL) and typical fire stair applications
-
-
AR50Single Offset Handrail | On Hob. For stairs & level applications under one metre (FFL) with offset (often used on concrete hobs)AR50Single Offset Handrail | On Hob. For stairs & level applications under one metre (FFL) with offset (often used on concrete hobs)
-
AR60Single Offset Handrail | Kerbrail. For disabled ramps under one metre (FFL) with offsetAR60Single Offset Handrail | Kerbrail. For disabled ramps under one metre (FFL) with offset
-
AR70Single Offset Handrail | Midrail. For level, ramp and stair applications under one metre (FFL) and midrail for extra protectionAR70Single Offset Handrail | Midrail. For level, ramp and stair applications under one metre (FFL) and midrail for extra protection
-
AR80Single Offset Handrail | Midrail & Kerbrail. For disabled ramps under one metre (FFL) with offset and midrail for extra protectionAR80Single Offset Handrail | Midrail & Kerbrail. For disabled ramps under one metre (FFL) with offset and midrail for extra protection
-
AR110Double Offset Handrail | On Hob. Also complies to Class 9b buildings used for primary schools in AustraliaAR110Double Offset Handrail | On Hob. Also complies to Class 9b buildings used for primary schools in Australia
-
-
AR120Double Offset Handrail | Kerbrail. Also complies to Class 9b buildings used for primary schools in AustraliaAR120Double Offset Handrail | Kerbrail. Also complies to Class 9b buildings used for primary schools in Australia
-
-
-
-
AR140Twin Double Offset Handrail. Also complies to Class 9b buildings used for primary schools in AustraliaAR140Twin Double Offset Handrail. Also complies to Class 9b buildings used for primary schools in Australia
-
-
AR150Single Offset Handrail | Wall Mounted. For level, ramp and stair applications with suitable substrate for mountingAR150Single Offset Handrail | Wall Mounted. For level, ramp and stair applications with suitable substrate for mounting
-
-
AR160Double Offset Handrail | Wall Mounted. Also complies to Class 9b buildings used for primary schools in AustraliaAR160Double Offset Handrail | Wall Mounted. Also complies to Class 9b buildings used for primary schools in Australia
-
Associated Mounts
-
Top Mount -
Face Mount -
Channel Mount -
Inground Mount -
Cored Mount -
Angle Mount
Compliance
Designed for accessibility compliance across Australia and New Zealand
Fully compliant with AS 1428.1 and NZS 4121 accessibility handrail requirementsSupports compliance with DDA / NCC / NZBC and other local statutory requirementsEngineered to meet handrail grip diameter, clearance, height and load requirementsCompatible with AS 1428 kerbrail requirements for accessible ramp installationsSupplied with pre-certification documentation to support inspection and project sign offSpecifications
All relevant technical documents, product specifications and compliance information for Assistrail® pre-engineered handrail systems are available below. These resources support design development, product specification and accessibility compliance requirements across Australia and New Zealand.
Customise
Although Moddex systems are designed as modular off-the-shelf solutions, every project is tailored to suit your exact site requirements.
Beyond standard configurations, our in-house design and engineering team can customise systems with alternative materials, bespoke infill panels, integrated lighting and alternative materials and finishes, while maintaining the efficiency and reliability of modular construction.
Find out more about our customisation options. Get in touch with our expert team, call us on 1800 663 339 (Australia) or 0800 663 339 (New Zealand) or download our product brochure. We’re here to help, whether you need a quote, technical advice or tender support.
FREQUENTLYASKED QUESTIONS
Common questions about Assistrail® accessibility handrail systems, including AS 1428 compliance, NCC requirements and considerations for specifying modular handrails on public access ramps, stairs and pathways.
- Is Assistrail compliant with the Disability Discrimination Act (DDA)?
- Is Assistrail compliant with Australian Standard AS 1428.1?
- Is Assistrail compliant with the National Construction Code (NCC)?
- Is Assistrail compliant with NZS 4121:2001?
- Is Assistrail compliant with the New Zealand Building Code (NZBC)?
- Can Assistrail be used in primary schools and Class 9b buildings?
- Does Assistrail require on-site welding for installation?
- Can Assistrail be retrofitted to existing ramps or stairs?
- What finish options are available for Assistrail handrails?
