KEY FEATURES
OF FLATBAL™
-
8 standard configurations
FlatBal™ is available in 8 standard configurations, with the same core heights and configuration logic as Conectabal including 1100mm, 1500mm and 1800mm options.
-
Proven Conectabal® performance
Built off the proven Conectabal® commercial balustrade system, FlatBal™ delivers a more architectural balustrade profile while retaining the practical performance benefits of a trusted Moddex system.
-
Fast no-weld assembly
The modular, no-weld design removes the need for onsite fabrication, hot works permits or specialised trades. Installed up to 50% faster than bespoke flat bar fabrication.
-
Complete barrier solution package
Ability to integrate with our Assistrail®, Bikesafe®, Bridgerail® and Ezibilt™ ramp, stair and platform ranges to form a comprehensive and cohesive solution.
-
Full compliance with NCC & NZBC
The pre-engineered system is pre-certified to National Construction Code, New Zealand Building Code and other local statutory compliance regulations.
-
Single or double rail configurations for schools
Available in single or double rail configurations, and multiple heights, including layouts commonly required for primary and secondary schools and Class 9B buildings.
APPLICATIONS & USE CASES OF FLATBAL™
Schools and universities
Sports and recreation centres
DDA access ramps and stairs
Public and urban spaces
Hotels and multi-residential developments
Modern transport infrastructure
Civic and community buildings
Commercial and mixed-use developments
Configurations
-
FB10Standard Balustrade | Flat Bar. For level applications, above one metre (FFL).FB10Standard Balustrade | Flat Bar. For level applications, above one metre (FFL).
-
FB20Balustrade | Toeboard | Flat Bar. For level applications, above one metre (FFL) requiring NCC, NZBC, AS/NZS 1657 compliance.FB20Balustrade | Toeboard | Flat Bar. For level applications, above one metre (FFL) requiring NCC, NZBC, AS/NZS 1657 compliance.
-
FB30Balustrade | Single Inline Handrail | Flat Bar. For level and stair applications above one metre (FFL).FB30Balustrade | Single Inline Handrail | Flat Bar. For level and stair applications above one metre (FFL).
-
FB35Balustrade | Single Inline Handrail & Kerbrail | Flat Bar. For level and ramp applications above one metre (FFL)FB35Balustrade | Single Inline Handrail & Kerbrail | Flat Bar. For level and ramp applications above one metre (FFL)
-
FB40Balustrade | Single Offset Handrail | Flat Bar. For level and stair applications above one metre (FFL)FB40Balustrade | Single Offset Handrail | Flat Bar. For level and stair applications above one metre (FFL)
-
FB45Balustrade | Single Offset Handrail & Kerbrail | Flat Bar. For level and ramp applications above one metre (FFL).FB45Balustrade | Single Offset Handrail & Kerbrail | Flat Bar. For level and ramp applications above one metre (FFL).
-
FB50Balustrade | Double Offset Handrail | Flat Bar. For Class 9B Buildings used for primary schools.FB50Balustrade | Double Offset Handrail | Flat Bar. For Class 9B Buildings used for primary schools.
-
FB55Balustrade | Double Offset Handrail & Kerbrail | Flat Bar. For Class 9B Buildings used for primary schools.FB55Balustrade | Double Offset Handrail & Kerbrail | Flat Bar. For Class 9B Buildings used for primary schools.
Associated Mounts
-
Top Mount -
Face Mount -
Channel Mount -
Inground Mount -
Cored Mount -
Angle Mount
Compliance
Designed for accessibility and barrier compliance across Australia and New Zealand
Meets NCC / NZBC requirements for balustrades and fall protection where height differences exceed one metreSupports compliance with NZBC Clause F4 (Safety from Falling) for edge protection in public and commercial environmentsEngineered in accordance with AS/NZS 1170.1 Structural Design Actions (Clause 3.6 – Barriers), including barrier and crowd loading classifications (up to C5 where required)Supports compliance with AS 1428 and NZS 4121 accessibility requirements where balustrades interface with accessible paths of travelVertical balusters spaced to comply with the 100mm sphere rule for openings in balustradesSpecifications
All relevant technical documents, product specifications and compliance information for Flatbal™ pre-engineered flat bar balustrade systems are available below. These resources support design development, product specification and accessibility compliance requirements across Australia and New Zealand.
PLEASE NOTE: BIM support for FlatBal™ is coming soon. For current project support, contact our Product and Technical Specification Specialist for product information, configuration guidance and available technical resources at specassist@moddex.com.
Did you know?

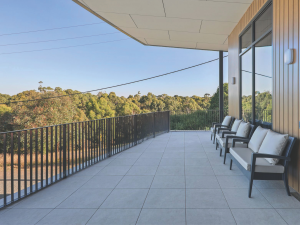

FlatBal™ can be powder coated to support a more refined project finish. A black powder coated FlatBal™ installation shows how the flat bar profile can create a sharper, more architectural result for projects where the balustrade needs to complement the surrounding design. It is a simple change in finish, but one that can make a big difference to the final visual outcome.
Explore FlatBal™
Find out more about our customisation options. Get in touch with our expert team, call us on 1800 663 339 (Australia) or 0800 663 339 (New Zealand) or download our product brochure. We’re here to help, whether you need a quote, technical advice or tender support.
FREQUENTLY ASKED QUESTIONS
Common questions about FlatBal™ commercial flat bar balustrade systems, including compliance, NCC & NZBC requirements and considerations for specifying modular balustrades on areas where there is a fall risk greater than 1m.
- What is FlatBal™?
- How is FlatBal™ different from Conectabal®?
- Where can FlatBal™ be used?
- How many configurations are available?
- Is FlatBal™ faster to install than custom flat bar fabrication?
- Is FlatBal™ custom made?
- What finishes are available?
- Is FlatBal™ suitable for schools?
- Are BIM files available for FlatBal™?
- Why choose FlatBal™ instead of fully custom flat bar fabrication?
