| Moddex Reference | Spec Detail | Application Process |
|---|---|---|
PC SYS 1 | Dulux Duralloy or equivalent - Standard PC finish Note: Some colours may attract a surcharge | Whip blast, metaprep (primer for Gal) Zinc for black steel, Powder coat |
PC SYS 2 | Dulux Duratech or equivalent – Commercial Grade PC finish Note: Some colours may attract a surcharge | Same as above but using commercial grade top coat |
PC SYS 3 | Wet Spray 2 coat Paint System – Industrial/Mining Grade Paint System | Sand blast, 2 pack epoxy primer, 2 pack poly urethane. |
Bikeway Barriers

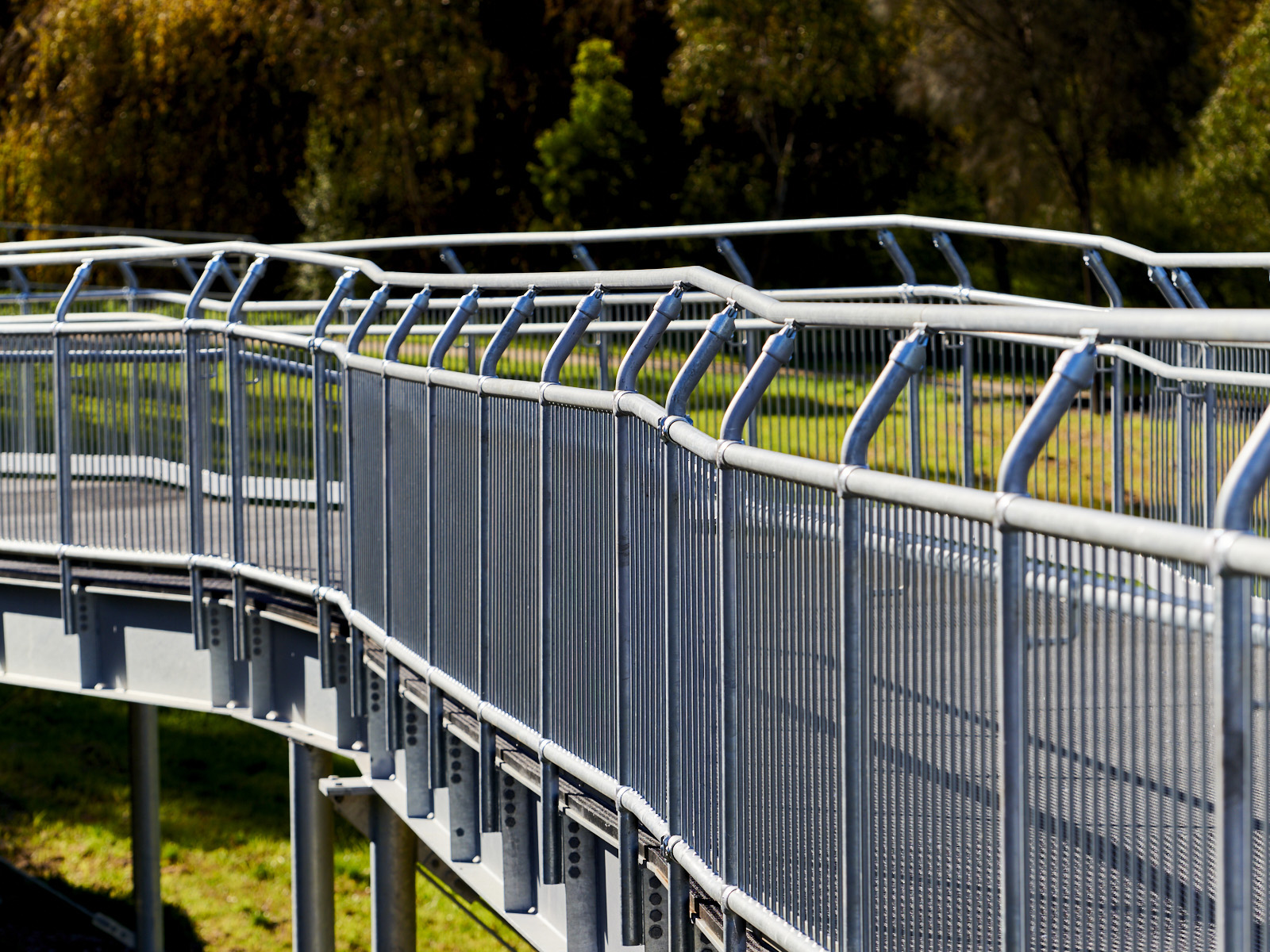

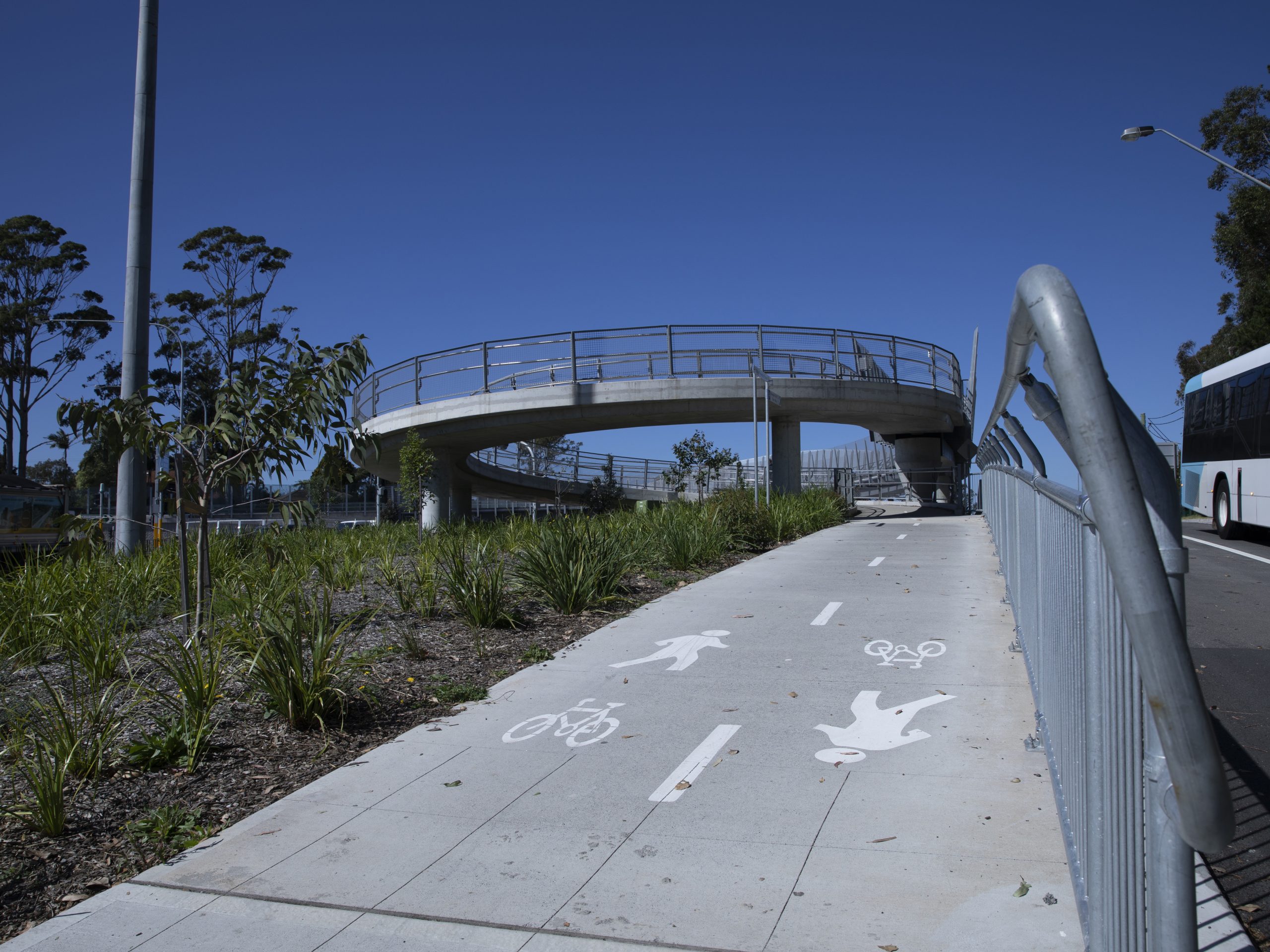

Moddex Bikesafe barriers ensure you protect cyclists, especially those travelling at speed, and eliminate or mitigate injury from falls. Bikesafe systems are quick and easy to install, with curved sections to flow with cycle ways.
With the ability to integrate seamlessly with our commercial balustrades and disability handrails, our Bikesafe barriers are designed with a continuous top rail to help prevent or mitigate injury for both pedestrians and cyclists, making your cycleways form a cohesive solution.
With nine configurations available in the Bikesafe family, Moddex bikeway barriers offer:
- Continuous full or partial offset barriers for protection across culverts, bridges, headwalls and hazards
- Smooth and continuous top rails for injury prevention
- Curves to flow with bike paths or cycle ways
Compliance
Pedestrians, and cyclists travelling at speed, are protected and your site will be compliant with Bikesafe barriers.
Moddex Bikeway Barriers are designed to align with Austroads Guide to Road Design Part 6A and 6B and the NZTA Bridge Manual – providing the ultimate protection for cyclists travelling at speed.
Moddex Powder/Paint Coat Specification – Reference Charts
Configurations
View materials:
-
-

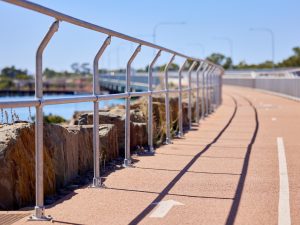

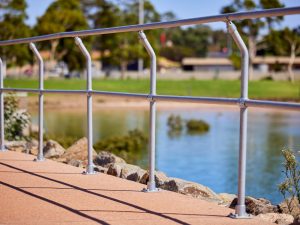

BS20Top Rail | Midrail. A standard partial barrier with smooth deflection rail for Austroads compliance.
-
-

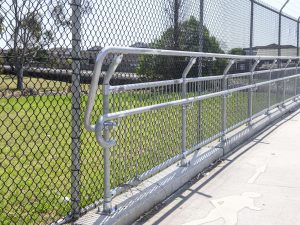

BS25Top Rail | Handrail. A partial barrier with smooth deflection rail, incorporating a handrail for additional assistance.
-
-
BS30Top Rail | Midrail & Bottom Rail. A partial barrier with smooth deflection rail for Austroads compliance and bottom rail for added protection.
-
-
BS35Top Rail | Handrail & Bottom Rail. A partial barrier with smooth deflection rail, incorporating a handrail for additional assistance and bottom rail for added protection.
-

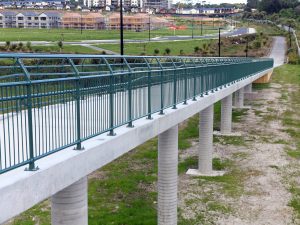

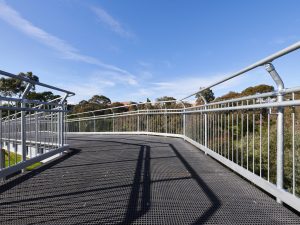

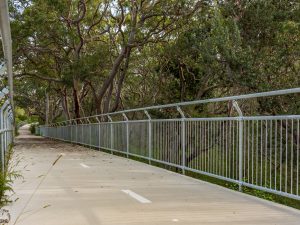

BS40Top Rail | Handrail & Balustrade Infill. A standard full barrier with smooth deflection rail for Austroads compliance.
-
-
BS40MTop Rail | Balustrade Infill & Mesh. Bikeway barrier with offset top rail and balustrade infill for level and rake.
-
BS45Top Rail | Handrail & Balustrade Infill. A full barrier with smooth deflection rail, incorporating a handrail for additional assistance.
-
-
BS45MTop Rail | Handrail & Balustrade Infill & Mesh. Bikeway barrier with offset top rail, handrail and balustrade infill for level and rake.
Associated Mounts
-
Top Mount -
Inground Mount -
Cored Mount
Applications
-
Shared pedestrian paths
-
Protection over culverts
-
Footbridges
Compliance
To save you some time, we’ve included an extract from the Austroads Guide to Road Design so you can see at a glance what is required to keep cyclists and pedestrians safer on a cycleway.
Excerpt from Austroads Guide To Road Design; Part 6A
5.5.3 The installation of a fence at the side of a path used by cyclists is desirable where:
- There is a steep batter or large vertical drop located in close proximity to the path
- The path is adjacent to an arterial road and it is necessary to restrict cyclist access to the road
- A bridge or culvert exists on a path
- A hazard exists adjacent to a particular bicycle facility
- Cyclists are likely to be ‘blazing a separate trail’ at an intersection between paths or around a path terminal
Also refer to NZTA Bridge Manual B6.4
PS1 documents also available. Request these today!
Customise
The Bikesafe range can be customised with Connectabal and Assistrail , whilst ensuring compliance with Australian and New Zealand Standards.
Find out more about our customisation options. Get in touch with our expert team, call us on 1800 663 339 (Australia) or 0800 663 339 (New Zealand) or download our product brochure. We’re here to help, whether you need a quote, technical advice or tender support.
