| Moddex Reference | Spec Detail | Application Process |
|---|---|---|
PC SYS 1 | Dulux Duralloy or equivalent - Standard PC finish Note: Some colours may attract a surcharge | Whip blast, metaprep (primer for Gal) Zinc for black steel, Powder coat |
PC SYS 2 | Dulux Duratech or equivalent – Commercial Grade PC finish Note: Some colours may attract a surcharge | Same as above but using commercial grade top coat |
PC SYS 3 | Wet Spray 2 coat Paint System – Industrial/Mining Grade Paint System | Sand blast, 2 pack epoxy primer, 2 pack poly urethane. |

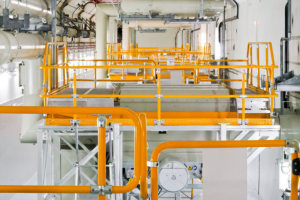

Industrial Handrails
Moddex Tuffrail industrial handrail systems ensure workers, pedestrians, employees and site visitors are protected.
This range boasts three material options – being suited for general warehouse use, through to use in extremely high corrosion areas.
The innovative Tuffgard® Toeboard is incorporated into this range for applications with open access beneath where an object could fall (Refer AS/NZS 1657).
With five configurations available in the Tuffrail family (with variations), Moddex industrial handrails offer:
- Single rail edge protection for “on ground” applications
- Top and mid rail designs incorporating Tuffgard® Toeboard
- Hot Dip Galvanized Steel, Aluminium – Mill Finish and 316 Grade Stainless Steel options
- Y14 Safety Yellow powder coat (Dulux Duralloy) finish product in stock
- Custom powder coating options (available on request)
Compliant industrials handrails
Moddex industrial handrails deliver AS 1657.2018 and NZS 1657.1992 compliant protection for workers across mezzanines, stairs, service platforms, walkways and fall edges.
To help you with design and installation, our team of Moddex technical experts are on hand with recommendations and compliance advice.
Moddex Powder/Paint Coat Specification – Reference Charts
Configurations
View materials:
-
-
TR20Top & Midrail.For level, rake or stair applications with no access beneath, or where there is a permanent structure within 10mm of the edge
-
-

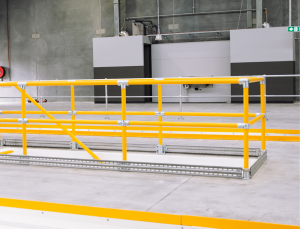

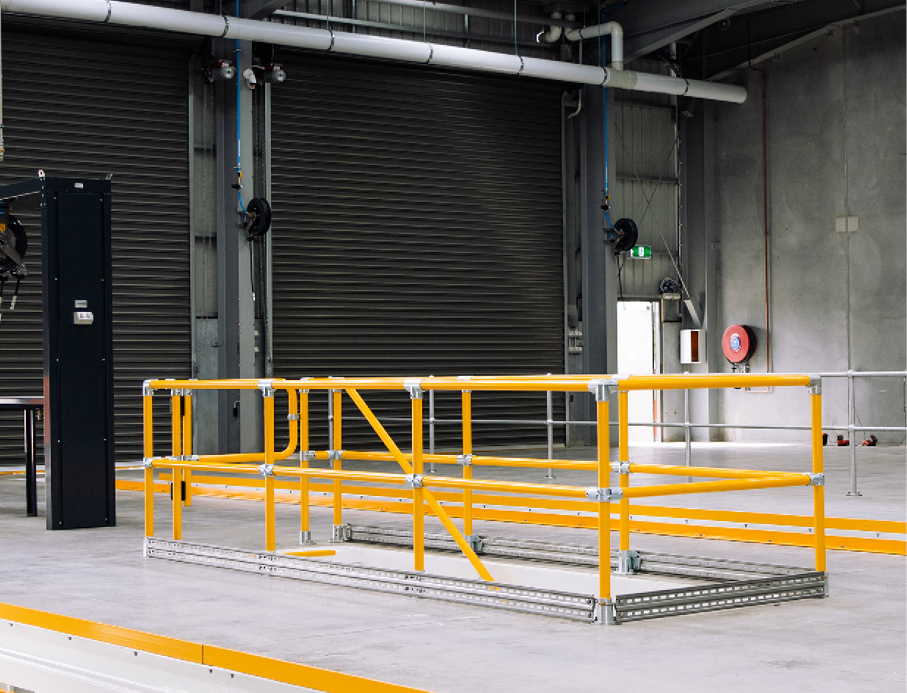

TR25Top & Mid Rail | Toeboard. Featuring Tuffgard Toeboard For level or rake applications with open access beneath, where an object could fall from a platform, landing or structure
-
-
TR30Top | Mid & Bottom Rails. For level, rake or stair applications with no access beneath, or where there is a permanent structure within 10mm of the edge – with a bottom rail for additional fall protection .
-
-
TR35Top | Mid & Bottom Rails with Toeboard. For level, rake or stair applications with no access beneath, or where there is a permanent structure within 10mm of the edge – with a bottom rail for additional fall protection .
-
-
-
-
Associated Mounts
-
Top Mount -
Face Mount -
Channel Mount -
Inground Mount -
Cored Mount -
Angle Mount
Applications
Easily configured to suit any application.
-

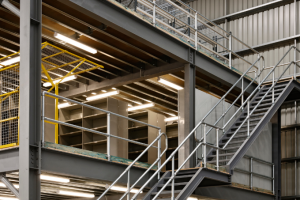

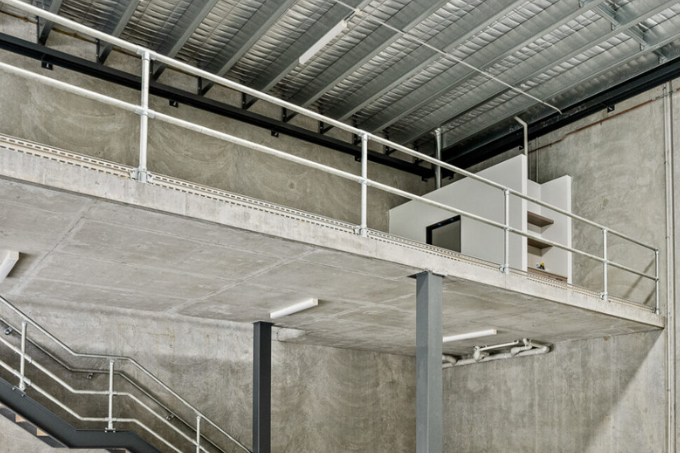

Mezzanines
-

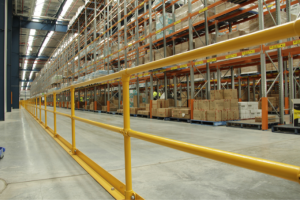

Warehouses and loading bays
-
Airports and shopping centres
-
Retaining walls and car parks
-

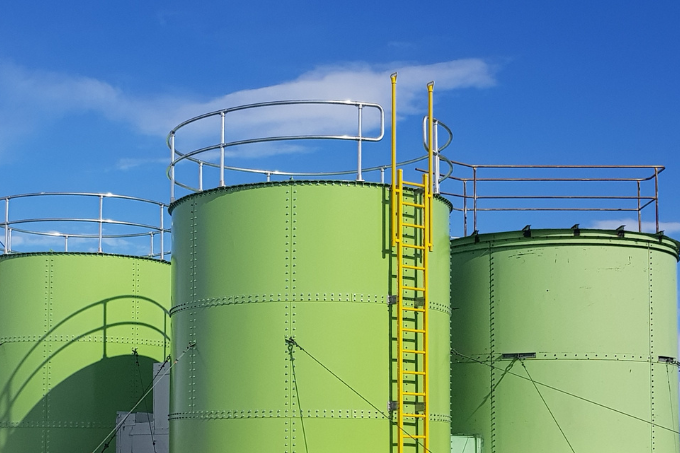

Coastal and high corrosion applications
-

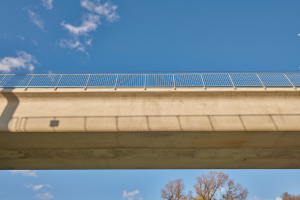

Pedestrian pathways and footbridges
-
Car parks and community centres
-
Culverts
Compliance
To save you some time, we’ve included the numbers of the relevant sections from Australian Standard 1657:2018 and New Zealand Standard 1657:1992 so you can see at a glance what sections you need for what is required to keep people safe in public areas.
From Australian Standard AS 1657:2018
5.4 GUARDRAILING
5.4.1 Provision of guardrailing
5.4.2 Requirements for walkways with slopes
5.5 TOEBOARD
5.6 HANDRAILS
5.6.1 General Handrails shall be designed and constructed in accordance with the requirements of this Clause (5.6).
5.6.2 Height
5.6.3 Hand clearance
5.6.6 Toeboard
From New Zealand Standard NZS 1657:1992
3.2 Protection at sides, ends, openings and edges
4.5 Guadrailing
4.6 Handrailing
PS1 documents also available. Request these today!
Customise
The Tuffrail range can be customised with Connectabal and Assistrail, whilst ensuring compliance with Australian and New Zealand Standards.
Find out more about our customisation options. Get in touch with our expert team, call us on 1800 663 339 (Australia) or 0800 663 339 (New Zealand) or download our product brochure. We’re here to help, whether you need a quote, technical advice or tender support.
